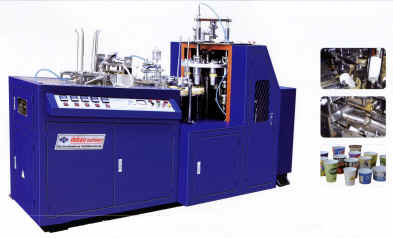

DTMBJ-L12 Vertical Single Coating Film Paper-cup Machine |
|||
|
|
|||
| Production capacity | 44-55 pcs/min | ||
| Paper material | 150-280g (special paper for single film coating paper cup) | ||
| Specification of paper cup | 3-12 ounce (changeable mould) | ||
| Power | 380V or 220V 3.8 KW variable frequency control | ||
| Weight | 1500 kg | ||
| Dimension (LxWxH) | 2600x1050x1550 mm | ||
|
Feature DTMBJ-L12 M vertical single coating film paper-cup machine and STMBJ-12 M vertical double coating film paper-cup machine are multi-station automatic machines, They have continuous procedures like automatic feeding, sealing, oil-filling, washing, heating, knurling, convex knurling, curling, unloading, etc. They are ideal equipments for producing paper testing-drinking cup, market cup, advertising cup, ice-cream cup, etc. It is small and high speed , power consumption little , fault rate low grade characteristic etc,. In addition, it adopts unique oval cup mould head design , makes cup has perfect features. STMBJ-L12 type vertical double coating film machine was built on DTMBJ-L12 type, adds ultrasonic device for special paper , for instance KFC cold drink cup , top-grade ice cream cup, etc. |
|||
