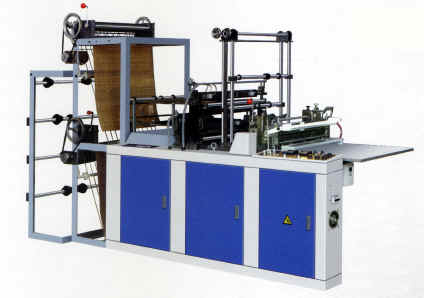

FQCT-600 (700) Computer High-Speed (Double-Layer)
Fully-automatic Bag Maker

  Model FQCT-600 FQCT-700
  Sealing and cutting width (mm) 10-550 10-650
  Sealing and cutting length (mm) 100-1200 100-1500
  Sealing and cutting thickness (mm) 0.01-.010 0.01-0.10
  bag-making speed (pcs/min) printed bag 30-100 printed bag 30-100
plain bag 60-320 plain bag 60-320
  Error in length (mm) +/- 1 +/- 1
  Motor power (KW) 1.1 1.5
  Machine weight (kg) 600 700
  Overall Dimension (mm) 2800x1180x1600 2900x1280x1650
Feature
   This machine is suitable for sealing and cutting the plastic film as high density polyethylene (HDPE), low density polyethylene (LDPE). It can be used for automatically sealing and cutting various plastic film with colors printing or without colors printing to be bags continuously. It is best equipment for making plastic vest bags and flat bags.
   This machine is controlled by microcomputer system, stepless regulated by step motor, featured by high-position stop, stable feeding and accurate positioning etc. The finished bags arc neat, stiff and smooth, with beautiful appearance.
