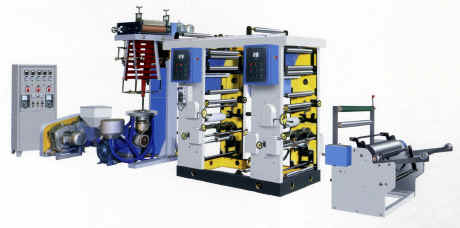

SJ-AY-50 Film Blowing and Printing Interlinking Machine Set

Model SJ-AY-50
Diameter of screw stem (mm) Ø50
Major Diameter Ratio of screw stem (L/D) 28:1
Rational speed of screw stem (rpm) 10-120
Specification of Die head (mm) Ø50 - Ø70
Thickness of products (mm) 0.004-0.08
Folding width of products (mm) 200-600
Main motor power (KW) 11
Heating power (KW) 18
Output (kg/h) 20-40
Machine weight (T) 4.8
Overall Dimensions (mm)

7200x2100x3300

Feature
   The machine group is a kind of economical machine group of which adopting the high-low voltage blowing molding machine of rise & fall to link with gravure press, is functioned by once complement of blowing molding & printing. This machine, which is sound in quick speed to produce, low consumption, simple operation, convenient & Fast repairing, especially is used to the packing sack and waistcoat sack with 1-3 colors register.
