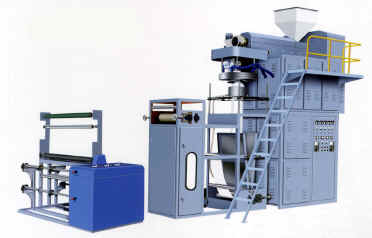

SJ-50 (40  60  70) Polypropylene Rotary Die Head
Film Blowing Machine Set

Model type SJ-40 SJ-50 SJ-60

SJ-70

Diameter of screw stem (mm) Ø40 Ø50 Ø60 Ø70
Major Dia. Ratio of screw stem (L/D) 28:1 28:1 28:1 28:1
Rational speed of screw stem (rpm) 30-60 30-60 30-60 30-60
Specification of die head (mm) Ø70 Ø90 Ø120 Ø150
Thickness of products (mm) 0.015-0.06 0.015-0.06 0.015-0.06 0.015-0.06
Folding width of products (mm) 100-400 100-500 100-600 150-700
Main motor power (KW) 7.5 11 15 18.5
Heating power (KW) 12 13 16 16
Output (kg/h) 15-35 20-40 25-45 25-50
Machine weight (T) 1.9 2 2.1 2.2
Overall dimensions (m) 5.0x2.0x3.3 5.2x2.1x3.4 5.3x2.2x3.5 5.4x2.3x3.6
Feature
   The machine is suitable for producing PP. it is widely be used for packing food, garment, textile, daily necessaries and industrial product etc.

Characteristics

1. Die head can be turned in 360" ,it can strengthen the tension and evenness degree film.
2. Screw stem and cylinder are all made of 38CRMOALA alloy, and treated by nitrogen. It has an advantage of great thickness, corrosion resistance and endurance etc.
3. Die head has been chromized, it's advantage of screw core structure, melting material extruding evenly, and blowing film smoothly etc. Cooling equipment is a labyrinth blow
pump which has good effect. Especially, it adopts the recycling cooling water system to ensure the best transparent effect.
4. Discharging equipment adopts pressing braking winding equipment&central winding equipment, and it adopts torque motor to adjust, has the merits of smooth film, convenience operation.
